Export and visualize Graphical models and Tensors (png, pdf)

pyagrum.lib.image aims to graphically export models and inference using pydot (and then graphviz).

import pyagrum as gum
from pyagrum.lib.image as gumimage

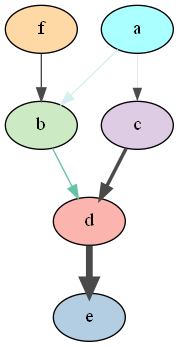

bn = gum.fastBN("a->b->d;a->c->d[3]->e;f->b")
gumimage.export(bn,"out/test_export.png",
                nodeColor={'a': 1,
                           'b': 0.3,
                           'c': 0.4,
                           'd': 0.1,
                           'e': 0.2,
                           'f': 0.5},
                arcColor={(0, 1): 0.2,
                          (1, 2): 0.5},
                arcWidth={(0, 3): 0.4,
                          (3, 2): 0.5,
                          (2,4) :0.6})

Visualization of models and inference

pyagrum.lib.image.export(model, filename=None, **kwargs)

export the graphical representation of the model in filename (png, pdf,etc.)

• Parameters:
  • model (pyagrum.GraphicalModel) – the model to show (pyagrum.BayesNet, pyagrum.MarkovRandomField, pyagrum.InfluenceDiagram or pyagrum.Tensor)
  • filename (str) – the name of the resulting file (suffix in [‘pdf’, ‘png’, ‘fig’, ‘jpg’, ‘svg’, ‘ps’]). If filename is None, the result is a np.array ready to be used with imshow().

Note

Model can also just possess a method toDot() or even be a simple string in dot syntax.

pyagrum.lib.image.exportInference(model, filename=None, **kwargs)

the graphical representation of an inference in a notebook

• Parameters:
  • model (pyAgrum:GraphicalModel) – the model in which to infer (pyagrum.BayesNet, pyagrum.MarkovRandomField or pyagrum.InfluenceDiagram)
  • filename (str) – the name of the resulting file (suffix in [‘pdf’, ‘png’, ‘ps’]). If filename is None, the result is a np.array ready to be used with imshow().
  • engine (pyagrum.Inference) – inference algorithm used. If None, gum.LazyPropagation will be used for BayesNet,gum.ShaferShenoy for gum.MarkovRandomField and gum.ShaferShenoyLIMIDInference for gum.InfluenceDiagram.
  • evs (Dict [**str ,**str |**int ]) – map of evidence
  • targets (Set [**str |**int ]) – set of targets
  • size (str) – size of the rendered graph
  • nodeColor (Dict [**int ,**float ]) – a nodeMap of values (between 0 and 1) to be shown as color of nodes (with special colors for 0 and 1)
  • factorColor (Dict [**int ,**float ]) – a nodeMap of values (between 0 and 1) to be shown as color of factors (in MarkovRandomField representation)
  • arcWidth (Dict [ (**int ,**int ) ,**float ]) – a arcMap of values to be shown as width of arcs
  • arcColor (Dict [ (**int ,**int ) ,**float ]) – a arcMap of values (between 0 and 1) to be shown as color of arcs
  • cmap (matplotlib.colors.ColorMap) – color map to show the color of nodes and arcs
  • cmapArc (matplotlib.colors.ColorMap) – color map to show the vals of Arcs.
  • graph (pyagrum.Graph) – only shows nodes that have their id in the graph (and not in the whole BN)
  • view (str) – graph | factorgraph | None (default) for Markov random field
• Returns: the desired representation of the inference
• Return type: str|dot.Dot
