Quantum Bayesian Network Sampling (`pyagrum.qBNSampling`)

The pyagrum.qBNSampling module encodes a Bayesian network as a quantum circuit so that measuring the circuit samples from the network’s joint distribution. It also provides a quantum rejection-sampling inference engine that computes posterior distributions conditioned on evidence using Grover-based amplitude amplification.

Dependencies: qiskit, qiskit-aer, qiskit-ibm-runtime, scipy.

References

• Circuit encoding: Borujeni et al., Quantum circuit representation of Bayesian networks, Expert Systems with Applications, 2021. arXiv:2004.14803
• Quantum inference: Low, Yoder, Chuang, Quantum inference on Bayesian networks, Physical Review A, 2014. arXiv:1402.7359

import pyagrum as gum
import pyagrum.lib.notebook as gnb
import pyagrum.qBNSampling as qBNS

Part 1 — qBNMC: encoding a Bayesian network as a quantum circuit

Each variable in the BN is mapped to $\lceil \log_2(|\text{dom}|) \rceil$ qubits. Its CPT is encoded as multi-qubit RY rotations: root nodes get unconditional rotations; non-root nodes get controlled rotations — one block per parent configuration, framed by X gates to select the correct control state.

Measuring the circuit returns a sample from the joint distribution of the network.

Illustrative example: 3-node BN

bn = gum.fastBN("A->B<-C", 2)
gnb.showBN(bn)

qbn = qBNS.qBNMC(bn)

print(f"Total qubits: {qbn.getTotNumQBits()}")
print(f"Qubit map (node id -> qubit ids): {qbn.n_qb_map}")

circuit = qbn.buildCircuit(add_measure=True)

Total qubits: 3
Qubit map (node id -> qubit ids): {0: [0], 1: [1], 2: [2]}

Running the circuit on the Aer simulator returns marginal probability vectors for each variable. Let us compare them with the exact marginals from LazyPropagation.

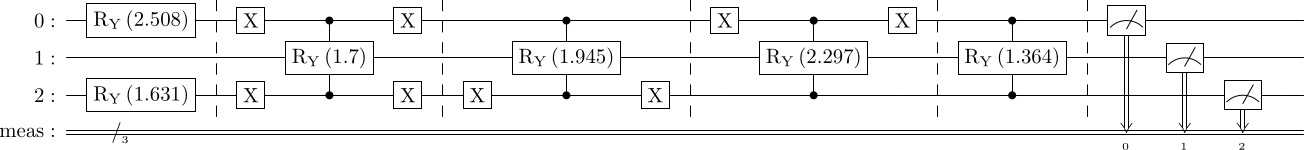

gnb.flow.row(gnb.getBN(bn), circuit.draw("mpl", scale=0.7))

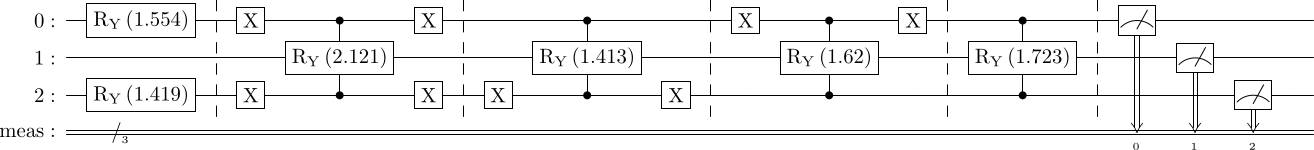

circuit.draw("latex")

circuit.draw()

        ┌────────────┐ ░ ┌───┐              ┌───┐ ░                          ░ »
     0: ┤ Ry(2.5085) ├─░─┤ X ├──────■───────┤ X ├─░────────────■─────────────░─»
        └────────────┘ ░ └───┘┌─────┴──────┐└───┘ ░      ┌─────┴──────┐      ░ »
     1: ───────────────░──────┤ Ry(1.7002) ├──────░──────┤ Ry(1.9446) ├──────░─»
        ┌────────────┐ ░ ┌───┐└─────┬──────┘┌───┐ ░ ┌───┐└─────┬──────┘┌───┐ ░ »
     2: ┤ Ry(1.6313) ├─░─┤ X ├──────■───────┤ X ├─░─┤ X ├──────■───────┤ X ├─░─»
        └────────────┘ ░ └───┘              └───┘ ░ └───┘              └───┘ ░ »
meas: 3/═══════════════════════════════════════════════════════════════════════»
                                                                               »
«        ┌───┐              ┌───┐ ░                ░ ┌─┐
«     0: ┤ X ├──────■───────┤ X ├─░───────■────────░─┤M├──────
«        └───┘┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ └╥┘┌─┐
«     1: ─────┤ Ry(2.2965) ├──────░─┤ Ry(1.3641) ├─░──╫─┤M├───
«             └─────┬──────┘      ░ └─────┬──────┘ ░  ║ └╥┘┌─┐
«     2: ───────────■─────────────░───────■────────░──╫──╫─┤M├
«                                 ░                ░  ║  ║ └╥┘
«meas: 3/═════════════════════════════════════════════╩══╩══╩═
«                                                     0  1  2

marginals = qbn.runBN(shots=10000)

ie = gum.LazyPropagation(bn)
ie.makeInference()

for name, tensor in marginals.items():
  print(f"P({name})")
  print(f"  qBNMC (10 000 shots) : {[round(v, 4) for v in tensor.tolist()]}")
  print(f"  LazyPropagation      : {[round(v, 4) for v in ie.posterior(name).tolist()]}")
  print()

P(A)
  qBNMC (10 000 shots) : [0.0976, 0.9024]
  LazyPropagation      : [0.0969, 0.9031]

P(B)
  qBNMC (10 000 shots) : [0.4488, 0.5512]
  LazyPropagation      : [0.4517, 0.5483]

P(C)
  qBNMC (10 000 shots) : [0.4706, 0.5294]
  LazyPropagation      : [0.4698, 0.5302]

Named example: Oil Company Stock Price (Borujeni et al., 2021)

A 4-node BN modelling the dependencies between Interest Rate (IR), Stock Market (SM), Oil Import (OI), and Stock Price (SP).

bn_oil = gum.fastBN("IR->SM->SP<-OI", 2)
bn_oil.cpt("IR")[:] = [0.75, 0.25]
bn_oil.cpt("SM")[:] = [[0.3, 0.7], [0.8, 0.2]]
bn_oil.cpt("OI")[:] = [0.6, 0.4]
bn_oil.cpt("SP")[:] = [[[0.1, 0.9], [0.3, 0.7]], [[0.4, 0.6], [0.7, 0.3]]]

gnb.showBN(bn_oil)

qbn_oil = qBNS.qBNMC(bn_oil)
print(f"Total qubits: {qbn_oil.getTotNumQBits()}")
qbn_oil.buildCircuit().draw("text")

Total qubits: 4

         ┌─────────┐   ░ ┌───┐              ┌───┐ ░                ░      »
     0: ─┤ Ry(π/3) ├───░─┤ X ├──────■───────┤ X ├─░───────■────────░──────»
         └─────────┘   ░ └───┘┌─────┴──────┐└───┘ ░ ┌─────┴──────┐ ░ ┌───┐»
     1: ───────────────░──────┤ Ry(1.9823) ├──────░─┤ Ry(0.9273) ├─░─┤ X ├»
                       ░      └────────────┘      ░ └────────────┘ ░ └───┘»
     2: ───────────────░──────────────────────────░────────────────░──────»
        ┌────────────┐ ░                          ░                ░ ┌───┐»
     3: ┤ Ry(1.3694) ├─░──────────────────────────░────────────────░─┤ X ├»
        └────────────┘ ░                          ░                ░ └───┘»
meas: 4/══════════════════════════════════════════════════════════════════»
                                                                          »
«                            ░                          ░                    »
«     0: ────────────────────░──────────────────────────░────────────────────»
«                      ┌───┐ ░                          ░ ┌───┐              »
«     1: ──────■───────┤ X ├─░────────────■─────────────░─┤ X ├──────■───────»
«        ┌─────┴──────┐└───┘ ░      ┌─────┴──────┐      ░ └───┘┌─────┴──────┐»
«     2: ┤ Ry(2.4981) ├──────░──────┤ Ry(1.9823) ├──────░──────┤ Ry(1.7722) ├»
«        └─────┬──────┘┌───┐ ░ ┌───┐└─────┬──────┘┌───┐ ░      └─────┬──────┘»
«     3: ──────■───────┤ X ├─░─┤ X ├──────■───────┤ X ├─░────────────■───────»
«                      └───┘ ░ └───┘              └───┘ ░                    »
«meas: 4/════════════════════════════════════════════════════════════════════»
«                                                                            »
«              ░                ░ ┌─┐
«     0: ──────░────────────────░─┤M├─────────
«        ┌───┐ ░                ░ └╥┘┌─┐
«     1: ┤ X ├─░───────■────────░──╫─┤M├──────
«        └───┘ ░ ┌─────┴──────┐ ░  ║ └╥┘┌─┐
«     2: ──────░─┤ Ry(1.1593) ├─░──╫──╫─┤M├───
«              ░ └─────┬──────┘ ░  ║  ║ └╥┘┌─┐
«     3: ──────░───────■────────░──╫──╫──╫─┤M├
«              ░                ░  ║  ║  ║ └╥┘
«meas: 4/══════════════════════════╩══╩══╩══╩═
«                                  0  1  2  3

marginals_oil = qbn_oil.runBN(shots=10000)

ie_oil = gum.LazyPropagation(bn_oil)
ie_oil.makeInference()

gnb.sideBySide(
  marginals_oil["SP"],
  ie_oil.posterior("SP"),
  captions=["qBNMC — 10 000 shots", "LazyPropagation — exact"],
)

SP 0 1 0.3610 0.6390 qBNMC — 10 000 shots

SP 0 1 0.3580 0.6420 LazyPropagation — exact

Multi-state variables: Naive Bayes Bankruptcy Prediction

Variables with more than 2 states require $\lceil \log_2(|\text{dom}|) \rceil > 1$ qubits. Here node B has 2 states and several children have 3 states (2 qubits each).

bn_bk = gum.fastBN("B->AU; B->IT; B->CH[3]; B->LM[3]")
bn_bk.generateCPTs()
gnb.showInference(bn_bk)

qbn_bk = qBNS.qBNMC(bn_bk)
print(f"Total qubits: {qbn_bk.getTotNumQBits()}")
print(f"Qubit widths: { {bn_bk.variable(n).name(): qbn_bk.getWidth(n) for n in bn_bk.nodes()} }")
qbn_bk.buildCircuit().draw("text")

Total qubits: 7
Qubit widths: {'B': 1, 'AU': 1, 'IT': 1, 'CH': 2, 'LM': 2}

        ┌────────────┐ ░ ┌───┐              ┌───┐ ░                ░ ┌───┐»
     0: ┤ Ry(1.9485) ├─░─┤ X ├──────■───────┤ X ├─░───────■────────░─┤ X ├»
        └────────────┘ ░ └───┘      │       └───┘ ░       │        ░ └───┘»
     1: ───────────────░────────────┼─────────────░───────┼────────░──────»
                       ░      ┌─────┴──────┐      ░ ┌─────┴──────┐ ░      »
     2: ───────────────░──────┤ Ry(1.4249) ├──────░─┤ Ry(1.5019) ├─░──────»
                       ░      └────────────┘      ░ └────────────┘ ░      »
   3_0: ───────────────░──────────────────────────░────────────────░──────»
                       ░                          ░                ░      »
   3_1: ───────────────░──────────────────────────░────────────────░──────»
                       ░                          ░                ░      »
   4_0: ───────────────░──────────────────────────░────────────────░──────»
                       ░                          ░                ░      »
   4_1: ───────────────░──────────────────────────░────────────────░──────»
                       ░                          ░                ░      »
meas: 7/══════════════════════════════════════════════════════════════════»
                                                                          »
«                                                       ┌───┐ ░               »
«     0: ──────■───────────■──────■────────■─────────■──┤ X ├─░───────■───────»
«              │           │      │        │         │  └───┘ ░       │       »
«     1: ──────┼───────────┼──────┼────────┼─────────┼────────░───────┼───────»
«              │           │      │        │         │        ░       │       »
«     2: ──────┼───────────┼──────┼────────┼─────────┼────────░───────┼───────»
«              │           │      │        │         │        ░       │       »
«   3_0: ──────┼───────────┼──────┼────────┼─────────┼────────░───────┼───────»
«              │           │      │        │         │        ░       │       »
«   3_1: ──────┼───────────┼──────┼────────┼─────────┼────────░───────┼───────»
«        ┌─────┴──────┐    │    ┌─┴─┐      │       ┌─┴─┐      ░ ┌─────┴──────┐»
«   4_0: ┤ Ry(1.3497) ├────■────┤ X ├──────■───────┤ X ├──────░─┤ Ry(1.4611) ├»
«        └────────────┘┌───┴───┐└───┘┌─────┴──────┐└───┘      ░ └────────────┘»
«   4_1: ──────────────┤ Ry(0) ├─────┤ Ry(2.2073) ├───────────░───────────────»
«                      └───────┘     └────────────┘           ░               »
«meas: 7/═════════════════════════════════════════════════════════════════════»
«                                                                             »
«                                          ░ ┌───┐              ┌───┐ ░ »
«     0: ────■──────■────────■─────────■───░─┤ X ├──────■───────┤ X ├─░─»
«            │      │        │         │   ░ └───┘┌─────┴──────┐└───┘ ░ »
«     1: ────┼──────┼────────┼─────────┼───░──────┤ Ry(1.3767) ├──────░─»
«            │      │        │         │   ░      └────────────┘      ░ »
«     2: ────┼──────┼────────┼─────────┼───░──────────────────────────░─»
«            │      │        │         │   ░                          ░ »
«   3_0: ────┼──────┼────────┼─────────┼───░──────────────────────────░─»
«            │      │        │         │   ░                          ░ »
«   3_1: ────┼──────┼────────┼─────────┼───░──────────────────────────░─»
«            │    ┌─┴─┐      │       ┌─┴─┐ ░                          ░ »
«   4_0: ────■────┤ X ├──────■───────┤ X ├─░──────────────────────────░─»
«        ┌───┴───┐└───┘┌─────┴──────┐└───┘ ░                          ░ »
«   4_1: ┤ Ry(0) ├─────┤ Ry(1.6664) ├──────░──────────────────────────░─»
«        └───────┘     └────────────┘      ░                          ░ »
«meas: 7/═══════════════════════════════════════════════════════════════»
«                                                                       »
«                       ░ ┌───┐                                                »
«     0: ──────■────────░─┤ X ├───────■───────────■──────■────────■─────────■──»
«        ┌─────┴──────┐ ░ └───┘       │           │      │        │         │  »
«     1: ┤ Ry(1.1793) ├─░─────────────┼───────────┼──────┼────────┼─────────┼──»
«        └────────────┘ ░             │           │      │        │         │  »
«     2: ───────────────░─────────────┼───────────┼──────┼────────┼─────────┼──»
«                       ░      ┌──────┴──────┐    │    ┌─┴─┐      │       ┌─┴─┐»
«   3_0: ───────────────░──────┤ Ry(0.63789) ├────■────┤ X ├──────■───────┤ X ├»
«                       ░      └─────────────┘┌───┴───┐└───┘┌─────┴──────┐└───┘»
«   3_1: ───────────────░─────────────────────┤ Ry(0) ├─────┤ Ry(1.3859) ├─────»
«                       ░                     └───────┘     └────────────┘     »
«   4_0: ───────────────░──────────────────────────────────────────────────────»
«                       ░                                                      »
«   4_1: ───────────────░──────────────────────────────────────────────────────»
«                       ░                                                      »
«meas: 7/══════════════════════════════════════════════════════════════════════»
«                                                                              »
«        ┌───┐ ░                                                  ░ ┌─┐      »
«     0: ┤ X ├─░────────■───────────■──────■────────■─────────■───░─┤M├──────»
«        └───┘ ░        │           │      │        │         │   ░ └╥┘┌─┐   »
«     1: ──────░────────┼───────────┼──────┼────────┼─────────┼───░──╫─┤M├───»
«              ░        │           │      │        │         │   ░  ║ └╥┘┌─┐»
«     2: ──────░────────┼───────────┼──────┼────────┼─────────┼───░──╫──╫─┤M├»
«              ░ ┌──────┴──────┐    │    ┌─┴─┐      │       ┌─┴─┐ ░  ║  ║ └╥┘»
«   3_0: ──────░─┤ Ry(0.62371) ├────■────┤ X ├──────■───────┤ X ├─░──╫──╫──╫─»
«              ░ └─────────────┘┌───┴───┐└───┘┌─────┴──────┐└───┘ ░  ║  ║  ║ »
«   3_1: ──────░────────────────┤ Ry(0) ├─────┤ Ry(1.2431) ├──────░──╫──╫──╫─»
«              ░                └───────┘     └────────────┘      ░  ║  ║  ║ »
«   4_0: ──────░──────────────────────────────────────────────────░──╫──╫──╫─»
«              ░                                                  ░  ║  ║  ║ »
«   4_1: ──────░──────────────────────────────────────────────────░──╫──╫──╫─»
«              ░                                                  ░  ║  ║  ║ »
«meas: 7/════════════════════════════════════════════════════════════╩══╩══╩═»
«                                                                    0  1  2 »
«
«     0: ────────────
«
«     1: ────────────
«
«     2: ────────────
«        ┌─┐
«   3_0: ┤M├─────────
«        └╥┘┌─┐
«   3_1: ─╫─┤M├──────
«         ║ └╥┘┌─┐
«   4_0: ─╫──╫─┤M├───
«         ║  ║ └╥┘┌─┐
«   4_1: ─╫──╫──╫─┤M├
«         ║  ║  ║ └╥┘
«meas: 7/═╩══╩══╩══╩═
«         3  4  5  6

marginals_bk = qbn_bk.runBN(shots=10000)

ie_bk = gum.LazyPropagation(bn_bk)
ie_bk.makeInference()

gnb.sideBySide(
  marginals_bk["CH"],
  ie_bk.posterior("CH"),
  captions=["qBNMC — 10 000 shots", "LazyPropagation — exact"],
)

CH 0 1 2 0.5788 0.3250 0.0962 qBNMC — 10 000 shots

CH 0 1 2 0.5782 0.3263 0.0955 LazyPropagation — exact

Part 2 — qBNRejection: inference with evidence

qBNRejection implements quantum rejection sampling (Low et al., 2014). Given evidence $e$, it uses the Grover iterate $G = S_e \, A^{-1} \, S_0 \, A$ to amplify the amplitude of states consistent with $e$, where:

• $A$ is the quantum circuit encoding of the BN (built by qBNMC);
• $S_e$ is a phase flip on the evidence qubits;
• $S_0$ is a phase flip on the all-zero state.

Each call to getSample applies $G^{\lceil 2^k \rceil}$ for increasing $k$ until a measurement consistent with the evidence is obtained (Algorithm 1). makeInference accumulates max_iter such samples to estimate the posterior.

Basic usage: 3-node BN with evidence

bn = gum.fastBN("A->B<-C", 2)
evidence = {"B": 0}

## Exact reference
ie = gum.LazyPropagation(bn)
ie.setEvidence(evidence)
ie.makeInference()
print("Exact P(A | B=0):", ie.posterior("A"))

Exact P(A | B=0):
  A                │
0        │1        │
─────────│─────────│
 0.8467  │ 0.1533  │

qbn = qBNS.qBNMC(bn)
qinf = qBNS.qBNRejection(qbn)
qinf.setEvidence(evidence)
qinf.setMaxIter(500)
qinf.makeInference()

{'A': [0.8340000000000006, 0.16600000000000012],
 'B': [1.0000000000000007, 0.0],
 'C': [0.4880000000000004, 0.5120000000000003]}

gnb.sideBySide(
  qinf.posterior("A"),
  ie.posterior("A"),
  captions=["qBNRejection — 500 samples", "LazyPropagation — exact"],
)

A 0 1 0.8340 0.1660 qBNRejection — 500 samples

A 0 1 0.8467 0.1533 LazyPropagation — exact

Restricting to the relevant subgraph: useFragmentBN

For a query involving only a subset of nodes, useFragmentBN builds a minimal BayesNetFragment containing only the ancestors of the target and evidence nodes. This reduces the number of qubits and speeds up the circuit.

## Larger BN: A->B->C->H; I->H; A->D->C; D->E; G->F->E
bn_large = gum.fastBN("A->B->C->H;I->H;A->D->C;D->E;G->F->E", 2)
gnb.showBN(bn_large, size=8)

evidence_large = {"H": 0, "A": 1}
target = "D"

qbn_large = qBNS.qBNMC(bn_large)
qinf_large = qBNS.qBNRejection(qbn_large)
qinf_large.setEvidence(evidence_large)

## Restrict the circuit to the ancestors of {target} ∪ evidence
qinf_large.useFragmentBN(target={target})

print(f"Full BN: {bn_large.size()} nodes, {qbn_large.getTotNumQBits()} qubits")
print(f"Fragment: {qinf_large.qbn.bn.size()} nodes, {qinf_large.qbn.getTotNumQBits()} qubits")
gnb.showBN(qinf_large.qbn.bn)

Full BN: 9 nodes, 9 qubits
Fragment: 6 nodes, 6 qubits

qinf_large.setMaxIter(500)
qinf_large.makeInference()

ie_large = gum.LazyPropagation(bn_large)
ie_large.setEvidence(evidence_large)
ie_large.makeInference()

gnb.sideBySide(
  qinf_large.posterior(target),
  ie_large.posterior(target),
  captions=[f"qBNRejection — P({target} | H=0, A=1)", "LazyPropagation — exact"],
)

D 0 1 0.8380 0.1620 qBNRejection — P(D | H=0, A=1)

D 0 1 0.8298 0.1702 LazyPropagation — exact

Named example: 4-node Oil BN with evidence

bn_oil = gum.fastBN("IR->SM->SP<-OI", 2)
bn_oil.cpt("IR")[:] = [0.75, 0.25]
bn_oil.cpt("SM")[:] = [[0.3, 0.7], [0.8, 0.2]]
bn_oil.cpt("OI")[:] = [0.6, 0.4]
bn_oil.cpt("SP")[:] = [[[0.1, 0.9], [0.3, 0.7]], [[0.4, 0.6], [0.7, 0.3]]]

evidence_oil = {"SP": 1}
target_oil = "OI"

ie_oil = gum.LazyPropagation(bn_oil)
ie_oil.setEvidence(evidence_oil)
ie_oil.makeInference()
print(f"Exact P({target_oil} | SP=1) = {ie_oil.posterior(target_oil)}")

Exact P(OI | SP=1) =
  OI               │
0        │1        │
─────────│─────────│
 0.7336  │ 0.2664  │

qbn_oil = qBNS.qBNMC(bn_oil)
qinf_oil = qBNS.qBNRejection(qbn_oil)
qinf_oil.setEvidence(evidence_oil)
qinf_oil.useFragmentBN(target={target_oil})
qinf_oil.setMaxIter(500)
qinf_oil.makeInference()

gnb.sideBySide(
  qinf_oil.posterior(target_oil),
  ie_oil.posterior(target_oil),
  captions=[f"qBNRejection — P({target_oil} | SP=1)", "LazyPropagation — exact"],
)

OI 0 1 0.7140 0.2860 qBNRejection — P(OI | SP=1)

OI 0 1 0.7336 0.2664 LazyPropagation — exact

QBN Summary

Class	Purpose	Key method
qBNMC	Encode BN as quantum circuit	buildCircuit(), runBN(shots)
qBNRejection	Posterior inference with evidence	setEvidence(), makeInference(), posterior(node)

Useful workflow:

1. Build qBNMC(bn) — circuit encoding.
2. Check marginals via runBN() (no evidence).
3. Build qBNRejection(qbn) and call useFragmentBN(target, evidence) to reduce circuit size.
4. setEvidence(), setMaxIter(), makeInference(), posterior(node).
